vsf fahrradmanufaktur GXQ-600

GXQ-600
GXQ-600 Shimano GRX RX600 2x11-speed / disc
  • Diamant 28" 48 cm / 51 cm / 54 cm / 57 cm / 60 cm
Standard colour *:
iced sage glossy
Colour options (extra charge)*:
Colours matt or glossy, depending on the model.

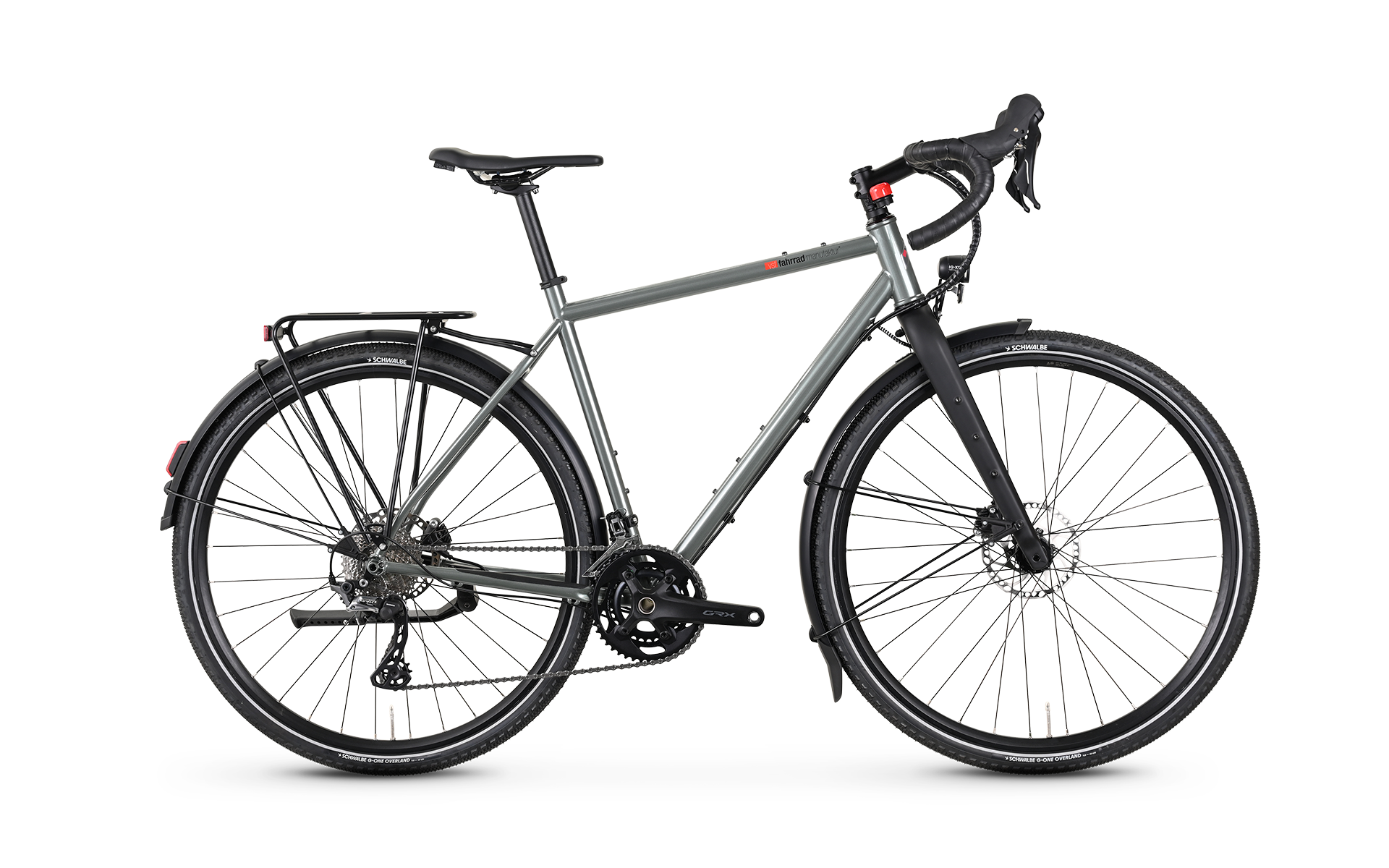

GXQ-600

Shimano GRX RX600 2x11-speed / disc

GXQ-600 – Suitable for everyday use and ready for the great outdoors

Our GXQ series (GXQ-400, GXQ-600, GXQ-800) combines balanced geometry for comfort and control with road-legal equipment – made for versatile use. The GXQ-600 is positioned as a high-quality mid-range model: suitable for everyday use and touring, reliable and confident on typical gravel surfaces.

The suspension fork-ready steel frame is designed for a total weight of up to 140 kg and provides noticeable comfort and safe control in a wide range of applications. The Shimano GRX 800 2×11-speed gear system offers precise gear changes, while hydraulic Shimano disc brakes (160 mm) bring the bike to a reliable stop even in changing conditions. A powerful Busch & Müller IQ-XS headlight with 70 lux and the bright Trelock rear light guarantee optimum visibility and safety.

On Mach1 Cross-R23 rims, the Schwalbe G-One Overland tyres deliver stable grip and comfortable riding characteristics – whether on asphalt, gravel or light trails. The lightweight carbon fork also ensures direct steering response and smooth handling, even with luggage.

The GXQ-600 is the ideal companion for ambitious gravel and touring rides that demand robustness, comfort and everyday practicality – a powerful overall package with plenty of performance reserves and high versatility.

GXQ-600 – superior gravel performance with everyday practicality.

In addition to the standard colours, this model is available in other special colours at an extra charge. For more detailed information on the cost of colour customisation, please contact your specialist dealer.

You can find all the information about our colour range here.

Framesize
Diamant 28": 48, 51, 54, 57, 60 cm
Frame
25 CrMo 4, double butted, suspension-fork-ready
max load
140 kg
Colour
iced sage glossy
Head set
Acros AZX-228, 1 1/8"-1,5", external cup
Fork
vsf fm Gravel carbon, 12 x 100 mm, flatmount, tapered,
Shifting System
Shimano GRX RD-RX810, 11-speed
Derailleur
Shimano GRX FD-RX810, 2-speed
Brakes
Shimano GRX BR-RX400 (front 160 mm / rear 160 mm), flatmount disc brake
Headlights
Busch & Müller Lumotec IQ-XS, 70 LUX including standinglight
Rear light
Trelock LS654, including standinglight
Carriers
Tubus Vega
Saddle
SQlab 611
Seat post
Ritchey WCS Carbon Link Flexilogic, 27.2 mm, 350 mm
Pedals
Marwi SP-102, flat pedal, aluminium, black
Kickstand
Atran Velo Atran Velo Parko
Chainguard
N.V.
Mudguard
SKS B55, plastic
Weight
13,8 kg
Stem
Levelnine, aluminium, 6°, ( 75 / 75 / 90 / 90 / 110 mm)
Handlebars
Levelnine Gravel, aluminium, Flare 12°, (420 / 420 / 440 / 440 / 440 mm)
Grips
Fizik Vento Solocush Tacky, black
Shift lever
Shimano GRX ST-RX600, 2-/11-speed
Brake lever
Shimano GRX ST-RX600, 2-/11-speed
Tires
Schwalbe G-One Overland 365, 45 x 622, TLE
Spokes
Niro, black
Front Hub
Shutter Precision PL-7, 12 x 100 mm, hub dynamo, Centerlock, 32 holes
Rear Hub
Shimano FH-RS470, Centerlock, 32 holes
Sprocket
Shimano 105 CS-HG700-11, 11-speed, 11-34 teeth
Chain
Shimano CN-HG601, 11-speed
Inner bearing
Shimano BB-MT501B, für Hollowtec II, BSA
Crank wheel set
Shimano GRX FC-RX600-11, Hollowtech II, 46/30 teeth, (170 / 170 / 172,5 / 172,5 / 175 mm)
Gear ratio (front:rear)
46/30 teeth : 11-34 teeth

Technical changes and changes in equipment reserved, color deviations possible.
