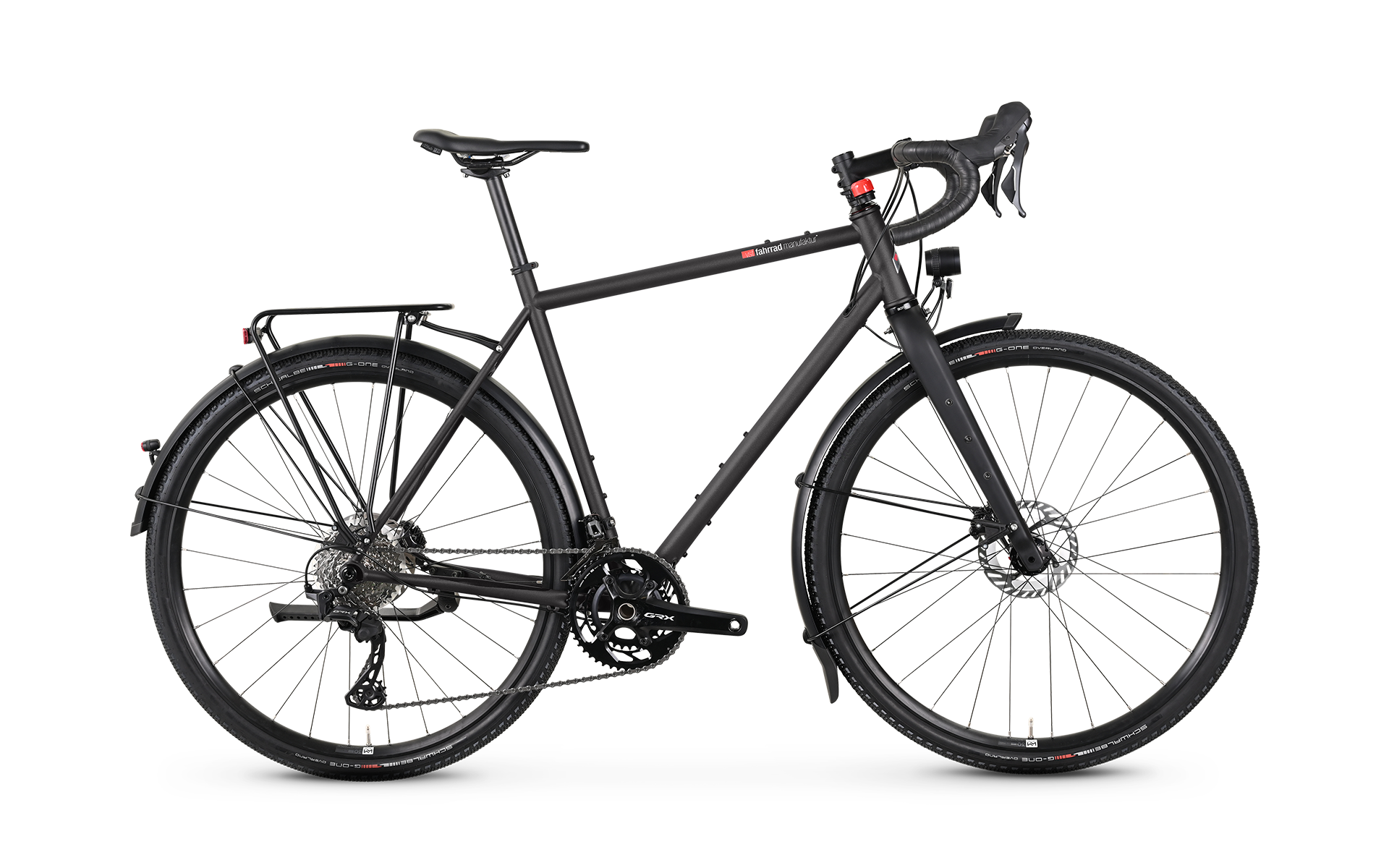

vsf fahrradmanufaktur GXQ-800

GXQ-800
GXQ-800 Shimano GRX RX820 2 x 12-speed / disc
  • Diamant 28" 48 cm / 51 cm / 54 cm / 57 cm / 60 cm
Standard colour *:
slate matt
Colour options (extra charge)*:
Colours matt or glossy, depending on the model.

GXQ-800

Shimano GRX RX820 2 x 12-speed / disc

GXQ-800 – the top model in the GXQ series

The bikes in the GXQ series (GX-400, GX-600, GX-800) not only score points with a frame geometry that prioritises comfort and control, but also with road traffic regulations (StVO) equipment suitable for everyday use. Our top model, the GXQ-800, combines genuine everyday, travel and touring suitability with superior performance on typical gravel surfaces.

The exclusive Reynolds 725 steel frame, suspension fork-ready and designed for a total weight of up to 130 kg, combines comfort and control on any surface. Cables routed inside the down tube ensure a tidy look and smooth shifting and braking performance. The Shimano GRX 800 2×12-speed gear system ensures precise gear changes, while hydraulic Shimano disc brakes (160 mm) guarantee safe deceleration in all weather conditions. A powerful 100 lux IQ-X headlight and minimalist rear light from Busch & Müller ensure optimum visibility and maximum presence on the road.

Schwalbe G-One Overland SuperGround tyres on Newmen Performance 30 rims provide reliable grip and comfortable rolling on asphalt, gravel or light trails. The lightweight carbon fork offers direct steering response and confident handling, even when the bike is fully loaded.

With this equipment, the GXQ-800 is ideal for ambitious gravel and travel adventurers who value robustness, comfort and roadworthiness at the highest level – without compromising on performance and versatility.

GXQ-800 – top performance meets everyday practicality.

In addition to the standard colours, this model is available in other special colours at an extra charge. For more detailed information on the cost of colour customisation, please contact your specialist dealer.

You can find all the information about our colour range here.

Framesize
Diamant 28": 48, 51, 54, 57, 60 cm
Frame
Reynold 725, Chrome-Moly, suspension-fork-ready
max load
130 kg
Colour
slate matt
Head set
Acros AZX-228, 1 1/8"-1,5", external cup
Fork
vsf fm Gravel carbon, 12 x 100 mm, flatmount, tapered,
Shifting System
Shimano GRX RD-RX820, 12-speed
Derailleur
Shimano GRX FD-RX820, 2-speed
Brakes
Shimano GRX BR-RX820 (front 160 mm / rear 160 mm), flatmount disc brake
Headlights
Busch & Müller Lumotec IQ-X, 100 LUX including standinglight
Rear light
Busch & Müller [my:], including standinglight
Carriers
Tubus Vega
Saddle
SQlab 611
Seat post
Ritchey WCS Carbon Link Flexilogic, 27.2 mm, 350 mm
Pedals
Marwi SP-102, flat pedal, aluminium, black
Kickstand
Atran Velo Atran Velo Parko
Chainguard
N.V.
Mudguard
SKS B55, plastic
Weight
13,1 kg
Stem
Levelnine, aluminium, 6°, ( 75 / 75 / 90 / 90 / 110 mm)
Handlebars
Levelnine Gravel, aluminium, Flare 12°, (420 / 420 / 440 / 440 / 440 mm)
Grips
Fizik Vento Solocush Tacky, black
Shift lever
Shimano GRX ST-RX820, 2-/12-speed
Brake lever
Shimano GRX ST-RX820, 2-/12-speed
Tires
Schwalbe G-One Overland Superground, 45 x 622, TLE
Spokes
Niro, black
Front Hub
SON 28 12, 12 x 100 mm, hub dynamo, Centerlock, 28 holes
Rear Hub
Shimano FH-TC500, Centerlock, 28 holes
Sprocket
Shimano 105 CS-HG710-12, 12-speed, 11-36 teeth
Chain
Shimano CN-M8100, 12-speed
Inner bearing
Shimano SM-BBR60, für Hollowtec II, BSA
Crank wheel set
Shimano GRX FC-RX820-2, Hollowtech II, 48/31 teeth, (170 / 170 / 172,5 / 172,5 / 175 mm)
Gear ratio (front:rear)
48/31 teeth : 11-36 teeth

Technical changes and changes in equipment reserved, color deviations possible.
