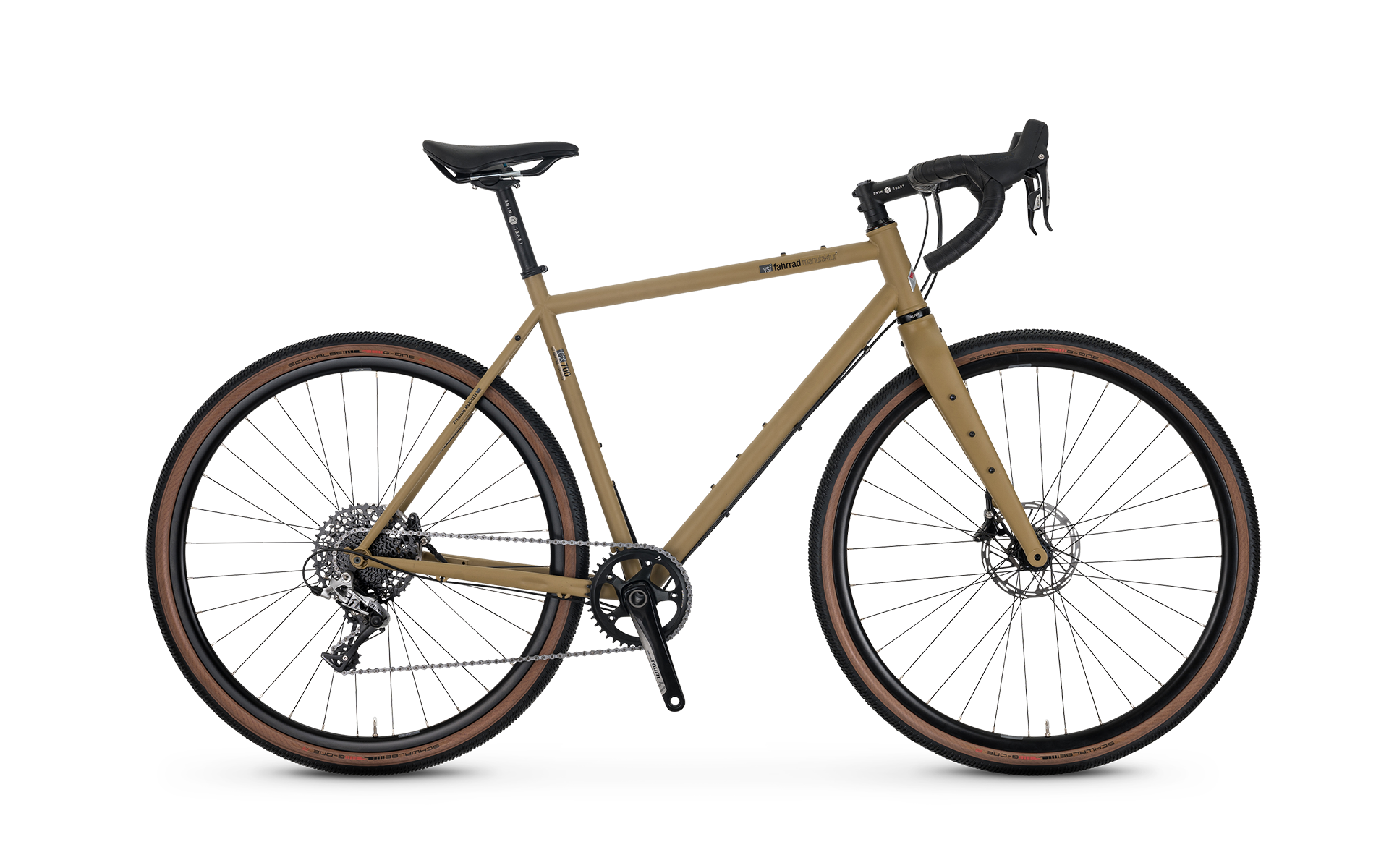

vsf fahrradmanufaktur GX-700

GX-700
GX-700 SRAM Apex XPLR AXS 12-speed / Disc
  • Diamant 28" 48 cm / 51 cm / 54 cm / 57 cm / 60 cm
Standard colour *:
wet terra matt
Colour options (extra charge)*:
All colours are available in matt or glossy.

GX-700

SRAM Apex XPLR AXS 12-speed / Disc

Premium all-rounder as an eye-catcher.

It's worth taking a look: The GX-700 impresses with a well thought-out combination of components and a decidedly smart mix of function, durability and weight.

The basis of the GX-700 is an excellent steel frame. The bulky, from own construction aluminum fork is made from one piece in the hydroforming process. This makes it extremely stable despite its low weight. In addition, the fork offers the possibility of mounting various accessories on the side.

With SRAM Apex AXS groupest, the GX-700 offers affordable top technology - even professionals rave about this drive.

The fast, wide and off-road Schwalbe G-One R guarantees speed and traction for any terrain. So even gravel enthusiasts are left wanting in terms of speed, design and ride comfort. And who rather stands on black, white or blue, just look at our color selection program: From 14 different colors, we have compiled a palette from which you can choose your individual favorite color.

Framesize
Diamant 28": 48, 51, 54, 57, 60 cm
Frame
25 CrMo 4, double butted
max load
120 kg
Colour
wet terra matt
Head set
Acros AZX-228, 1 1/8"-1,5", External Cup
Fork
vsf fm Gravel 28" aluminum, 12 x 100 mm, Flatmount, tapered,
Shifting System
SRAM Apex XPLR AXS, 12-speed
Derailleur
- - -
Brakes
SRAM Apex (front 160 mm / rear 160 mm), Flatmount disc
Headlights
- - -, - - - LUX
Rear light
- - -
Carriers
- - -
Saddle
Selle Italia Model Y
Seat post
Ritchey WCS Carbon Link Flexilogic, 27.2 mm, 350 mm
Pedals
- - -
Kickstand
- - -
Chainguard
- - -
Mudguard
, - - -
Weight
11.3 kg
Stem
Levelnine, aluminum, 6°, (90 / 90 / 90 / 110 / 110 mm)
Handlebars
Levelnine Gravel, aluminum, Flare 12°, (440 / 440 / 440 / 460 / 480 mm)
Grips
Fizik Vento Solocush Tacky handlebar tape, 2,7 mm thick, black
Shift lever
SRAM Apex XPLR AXS , 12-speed
Brake lever
SRAM Apex XPLR AXS , 12-speed
Tires
Schwalbe G-One R, 45-622
Spokes
Niro 2,0 mm black
Front Hub
Shutter Precission PL-7, 12 x 100 mm, hub dynamo, Centerlock, 32 holes
Rear Hub
KT, 12 x 142 mm , Centerlock, 32 holes
Sprocket
SRAM XPLR PG-1231, 12-speed, 11-44 teeth
Chain
SRAM Apex , 12-speed
Inner bearing
SRAM DUB, BSA
Crank wheel set
SRAM Apex, 40 teeth, 170 mm
Gear ratio (front:rear)
40 teeth : 11-44 teeth

Technical changes and changes in equipment reserved, color deviations possible.
