- Diamant 28" 48 cm / 51 cm / 54 cm / 57 cm / 60 cm
smaragd matt

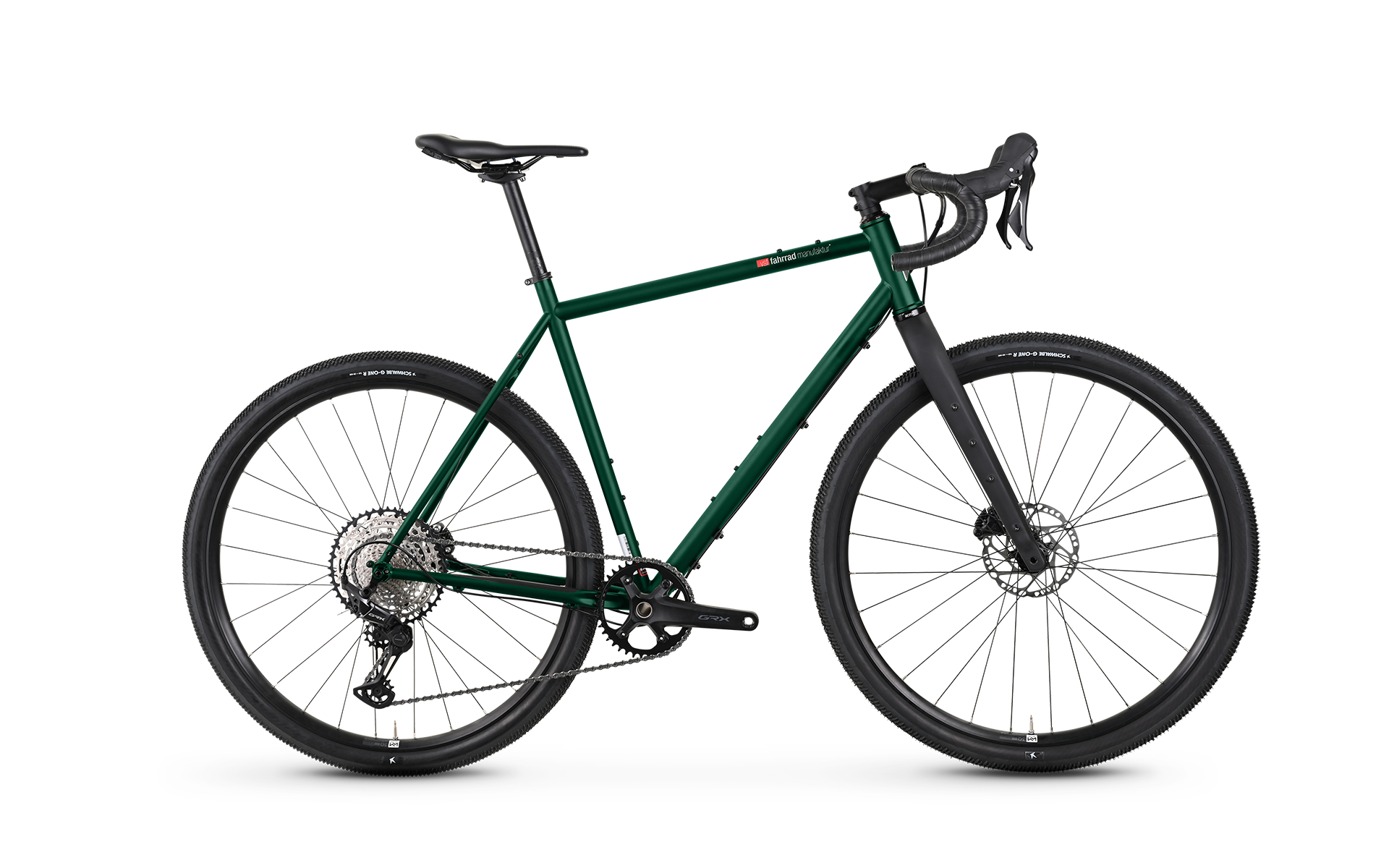

GX-600
Shimano GRX RX822 12-speed / disc
GX-600 – built for real gravel moments
Designed for long tours and varied terrain, the suspension fork-ready frame sets new standards and, thanks to its adapted frame geometry, combines comfort with speed and precise control – from asphalt to gravel paths. Thanks to a variety of mounting points, bags, mudguards, luggage racks or bottles can be easily attached.
The robust, suspension fork-ready steel frame with a total weight of up to 130 kg combines sportiness with comfort and genuine touring capability. The proven Shimano GRX 800 12-speed gear system ensures smooth gear changes, and the Schwalbe G-One R tyres on Newmen Performance rims offer stable grip, while our proprietary lightweight gravel carbon fork guarantees direct steering response and confident handling.
Weighing 11,2 kg, the GX-600 is aimed at ambitious touring cyclists and bike packers, but remains perfectly suitable for everyday use. A bike for anyone who wants to experience gravel not only quickly, but also in a versatile way.
GX-600 – when distance is just as important as speed.
In addition to the standard colours, this model is available in other special colours at an extra charge. For more detailed information on the cost of colour customisation, please contact your specialist dealer.
You can find all the information about our colour range here.
- Framesize
- Diamant 28": 48, 51, 54, 57, 60 cm
- Frame
- 25 CrMo 4, double butted, suspension-fork-ready
- max load
- 130 kg
- Colour
- smaragd matt
- Head set
- Acros AZX-228, 1 1/8"-1,5", external cup
- Fork
- vsf fm Gravel carbon, 12 x 100 mm, flatmount, tapered,
- Shifting System
- Shimano GRX RD-RX822-SGS, 12-speed
- Derailleur
- N.V.
- Brakes
- Shimano GRX BR-RX410 (front 160 mm / rear 160 mm), flatmount disc brake
- Headlights
- N.V., N.V. LUX
- Rear light
- N.V.
- Carriers
- N.V.
- Saddle
- SQlab 611
- Seat post
- Ritchey WCS Carbon Link Flexilogic, 27.2 mm, 350 mm
- Pedals
- Marwi SP-102, flat pedal, aluminium, black
- Kickstand
- N.V.
- Chainguard
- N.V.
- Mudguard
- , N.V.
- Weight
- 11,2 kg
- Stem
- Levelnine, aluminium, 6°, ( 75 / 75 / 90 / 90 / 110 mm)
- Handlebars
- Levelnine Gravel, aluminium, Flare 12°, (420 / 420 / 440 / 440 / 440 mm)
- Grips
- Fizik Vento Solocush Tacky, black
- Shift lever
- Shimano GRX ST-RX610, 1-/12-speed
- Brake lever
- Shimano GRX ST/BL-RX610, 1-/12-speed
- Tires
- Schwalbe G-One R Raceguard, 50 x 622, TLE
- Spokes
- Niro, black
- Front Hub
- Shimano HB-TC500, Centerlock, 28 holes
- Rear Hub
- Shimano SLX FH-TM7110, Centerlock, 28 holes, Microspline
- Sprocket
- Shimano SLX CS-M7100, 12-speed, 10-51 teeth
- Chain
- Shimano SLX CN-M7000, 12-speed
- Inner bearing
- Shimano BB-MT501B, für Hollowtec II, BSA
- Crank wheel set
- Shimano GRX FC-RX610-1, Hollowtech II, 40 teeth, (170 / 170 / 172,5 / 172,5 / 175 mm)
- Gear ratio (front:rear)
- 40 teeth : 10-51 teeth
Technical changes and changes in equipment reserved, color deviations possible.
