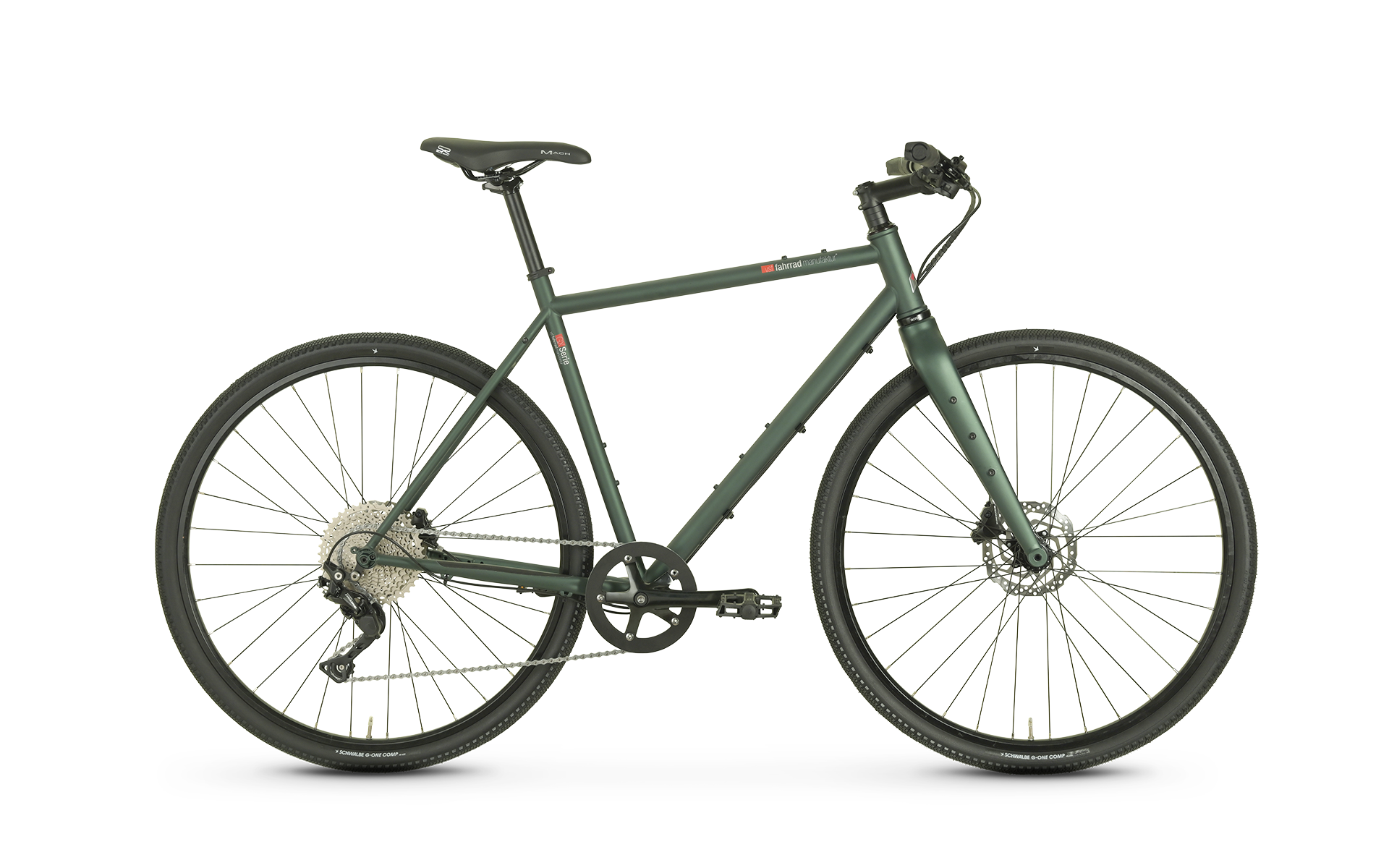

vsf fahrradmanufaktur GX-Flatbar

GX-Flatbar
GX-Flatbar Shimano Deore 10-speed / Disc
  • Diamant 28" 48 cm / 51 cm / 54 cm / 57 cm / 60 cm
Standard colour *:
smaragd matt

GX-Flatbar

Shimano Deore 10-speed / Disc

GX Flatbar – fast on gravel, swift in the city

Available in two colours, the GX Flatbar is ‘at home on the road’ but combines gravel feeling with urban lifestyle. If you're looking for your first sporting gravel adventure but also want a reliable, robust bike for everyday urban use, this is the perfect choice. Speed, stability and control are the focus of this gravel model – except that the straight handlebars ensure a central, confident riding position.

At its core: a sturdy steel frame, loadable up to 120 kg, paired with the 10-speed Shimano Deore for smooth gear changes. Hydraulic disc brakes with 160 mm brake discs keep you safely on track even in wet conditions.

The 45 mm wide Schwalbe G-One Comp K-Guard tyres on Schürmann YAK19 rims provide grip on asphalt, gravel or forest trails. The aluminium gravel fork complements the setup with precise handling and stable performance – light enough for sporty ambitions, robust enough for everyday use.

The GX Flatbar is a clever package for anyone who wants to discover gravel riding without sacrificing a robust bike for everyday use.

GX Flatbar – Suitable for everyday use. Ready for adventure.

Framesize
Diamant 28": 48, 51, 54, 57, 60 cm
Frame
25 CrMo 4, double butted
max load
120 kg
Colour
ebony matt, smaragd matt
Head set
Acros AZX-228, 1 1/8"-1,5", External Cup
Fork
vsf fm Futura Cross+, Carbon, 12 x 100 mm, Flatmount, tapered,
Shifting System
Shimano Ekar, 13-speed, Clutch lock
Derailleur
N.V.
Brakes
Campagnolo Ekar (front 160 mm / rear 160 mm), Flatmount Disc brake
Headlights
N.V., N.V. LUX
Rear light
N.V.
Carriers
N.V.
Saddle
Selle Royal ClipOn with Base-Cover
Seat post
Ritchey WCS Carbon Link Flexilogic, 27.2 mm, 350 mm
Pedals
Marwi SP-102, Flat Pedal, Aluminium, black
Kickstand
N.V.
Chainguard
N.V.
Mudguard
, N.V.
Weight
12,2 kg
Stem
Ritchey C-220 WCS Aluminium, 6°, (70 / 70 / 70 / 90 / 90 mm)
Handlebars
Ritchey Butano WCS Aluminium, Flare 12°, (400 / 420 / 440 / 460 / 460 mm)
Grips
Brooks Cambium, 3,0 mm stark, black
Shift lever
Campagnolo Ekar, 13-speed, Ultra-Shift
Brake lever
Campagnolo Ekar, 13-speed, Ultra-Shift
Tires
Schwalbe G-One R Raceguard, 50 x 622, TLE
Spokes
Newmen black
Front Hub
Newmen Advanced, 12 x 100 mm, Centerlock
Rear Hub
Newmen Advanced, 12 x 142 mm, Centerlock, N3W
Sprocket
Campagnolo Ekar, 13-speed, 10-44 teeth, N3W freewheel
Chain
Campagnolo Ekar, 13-speed
Inner bearing
Campagnolo Ekar Pro-Tech, BSA
Crank wheel set
Campagnolo Ekar, Carbon, 40 teeth, (170 / 172,5 / 175 mm)
Gear ratio (front:rear)
40 teeth : 10-44 teeth

Technical changes and changes in equipment reserved, color deviations possible.
