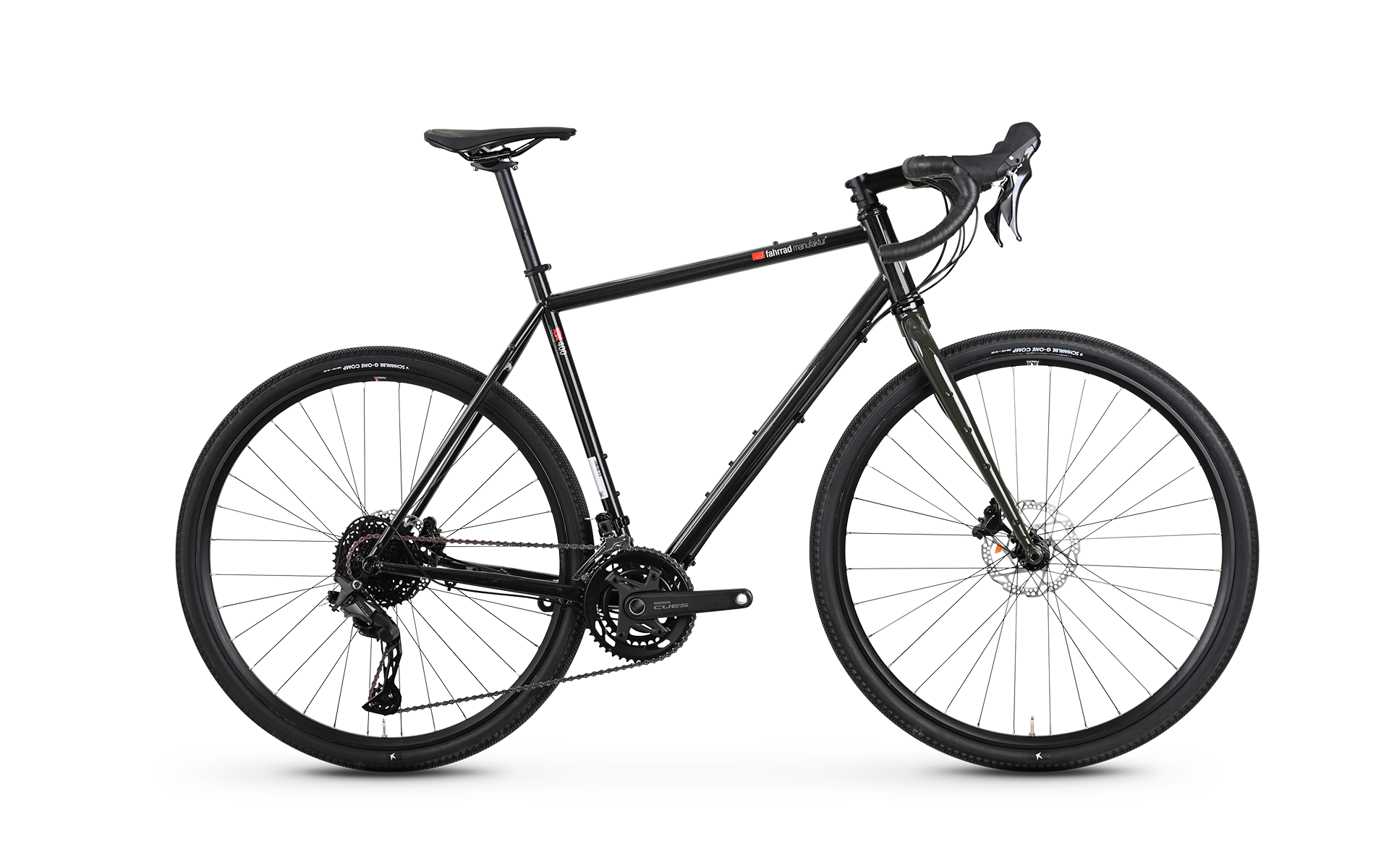

vsf fahrradmanufaktur GX-400

GX-400
GX-400 Shimano Cues U6000 2 x 10-speed / disc
  • Diamant 28" 48 cm / 51 cm / 54 cm / 57 cm / 60 cm
Standard colour *:
black olive glossy
ebony matt
Colour options (extra charge)*:
Colours matt or glossy, depending on the model.

GX-400

Shimano Cues U6000 2 x 10-speed / disc

GX-400 – your gateway to the world of gravel

If you're looking to take your first steps into the world of gravel, the GX-400 is a confident entry-level bike for longer distances and your first bike packing projects. Comfort, stability and control are clearly at the forefront of the current gravel series (GX-400, GX-600, GX-800) – exactly what you need for extended tours and changing surfaces.

At its heart is a sturdy steel frame with suspension fork option. Numerous mounting points for bags, mudguards, luggage racks or bottles demonstrate its uncompromising adventure character. The permissible total weight of up to 140 kg offers reserves for luggage, everyday use and adventure alike. The 2x10 Shimano Cues U6020 gear system delivers smooth gear changes across a wide range of ratios, while hydraulic Shimano disc brakes with 160 mm rotors provide reliable deceleration even in wet conditions.

Newmen Performance rims combined with 45 mm wide Schwalbe G-One Comp K-Guard tyres ensure secure grip on gravel, asphalt or forest trails. The setup is complemented by a lightweight, specially developed gravel carbon fork that enables precise steering and noticeable riding stability.

Light enough for sporting ambitions, robust enough for everyday use: the GX-400 is aimed at riders who want to seriously explore gravel riding – without immediately entering the high-end segment.

GX-400 – the entry-level bike with potential.

In addition to the standard colours, this model is available in other special colours at an extra charge. For more detailed information on the cost of colour customisation, please contact your specialist dealer.

You can find all the information about our colour range here.

Framesize
Diamant 28": 48, 51, 54, 57, 60 cm
Frame
25 CrMo 4, double butted, suspension-fork-ready
max load
140 kg
Colour
ebony matt, black olive glossy
Head set
Acros AZX-228, 1 1/8"-1,5", external cup
Fork
vsf fm steel, 12 x 100 mm, Flatmount, tapered,
Shifting System
Shimano Cues RD-U6020-10, 10-speed
Derailleur
Shimano Cues FD-U6030, 2-speed
Brakes
Shimano Cues BR-U6030 (front 160 mm / rear 160 mm), flatmount disc brake
Headlights
N.V., N.V. LUX
Rear light
N.V.
Carriers
N.V.
Saddle
Selle Italia Model Y
Seat post
Ritchey WCS Carbon Link Flexilogic, 27.2 mm, 350 mm
Pedals
Marwi SP-450, flat pedal, black
Kickstand
N.V.
Chainguard
N.V.
Mudguard
, N.V.
Weight
12,9 kg
Stem
Levelnine, aluminium, 6°, ( 75 / 75 / 90 / 90 / 110 mm)
Handlebars
Levelnine Gravel, aluminium, Flare 12°, (420 / 420 / 440 / 440 / 440 mm)
Grips
Fizik Vento Solocush Tacky, black
Shift lever
Shimano Cues ST-U6030, 2-/10-speed
Brake lever
Shimano Cues ST-U6030, 2-/10-speed
Tires
Schwalbe G-One Comp K-Guard, 45 x 622
Spokes
Niro, black
Front Hub
Shimano HB-TC500, Centerlock, 32 holes
Rear Hub
Shimano FH-TC500, Centerlock, 32 holes
Sprocket
Shimano CS-LG300-10, 10-speed, 11-39 teeth
Chain
Shimano CN-LG500
Inner bearing
Shimano BB-MT501B, für Hollowtec II, BSA
Crank wheel set
Shimano Cues FC-U6030-2, Hollowtech II, 46/32 teeth, (170 / 170 / 172,5 / 172,5 / 175 mm)
Gear ratio (front:rear)
46/32 teeth : 11-39 teeth

Technical changes and changes in equipment reserved, color deviations possible.
